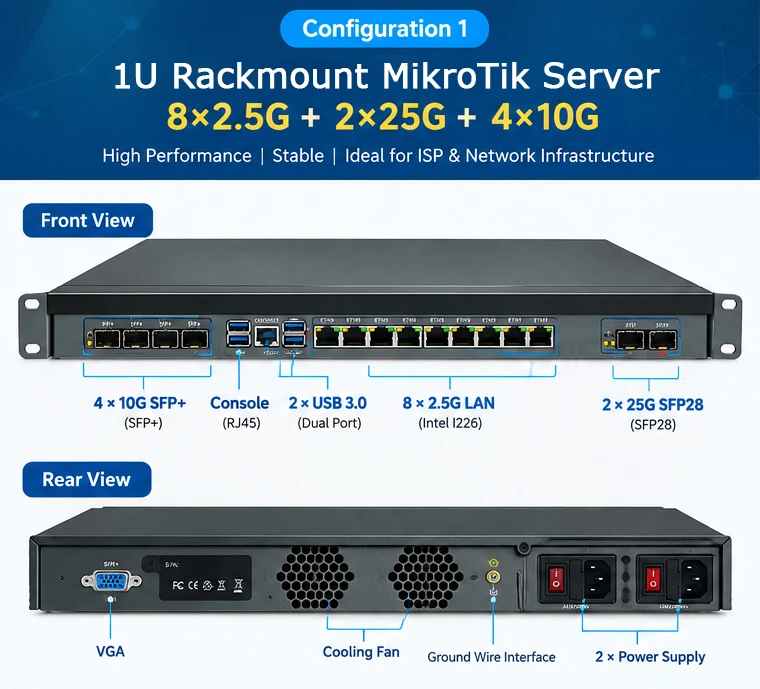

1U Rackmount Server Platform for MikroTik & ISP Networking

একটি compact ও server-grade 1U C612 platform, যা MikroTik RouterOS/CHR, ISP Core Router, PPPoE Server, Network Gateway, BGP/OSPF, VLAN, Traffic Management, Monitoring ও অন্যান্য high-performance networking কাজে ব্যবহার করা যেতে পারে।

Main Configuration

• Motherboard: Intel C612 Server Motherboard
• CPU: Intel Xeon E5-2650 v4
• RAM: 8GB DDR4 2400MHz
• LAN: 8 × Intel I226 2.5G Ethernet
• 10G: 4 × 10G SFP+
• 25G: 2 × 25G SFP28
• Storage: 2 × M.2 NVMe
• Storage Interface: 2 × SATA 3.0
• Expansion: 1 × PCIe x16 (x8 signal) + 1 × PCIe x8
• Display: ASPEED AST2400 + VGA
• Power: Dual/Redundant Power Supply
• Form Factor: 1U Rackmount
• Size: 440 × 250 × 50 mm

Key Features

• 8টি 2.5G Ethernet port
• 4টি 10G SFP+ optical port
• 2টি 25G SFP28 optical port
• Intel Xeon server-grade processor
• Dual/Redundant Power Supply
• 2× M.2 NVMe support
• 2× SATA 3.0
• PCIe expansion support
• PXE Boot
• Watchdog
• Network Wake-up
• Scheduled Power-on

Suitable For

• MikroTik RouterOS
• MikroTik CHR
• ISP Core Router
• PPPoE Server
• BNG/BRAS
• BGP & OSPF Routing
• VLAN Routing
• Traffic Management
• Network Monitoring
• CDN/IX/Upstream connectivity
• Data Center Networking

Note: RAM, storage, SFP+/SFP28 transceiver এবং অন্যান্য networking accessories প্রয়োজন অনুযায়ী কনফিগার করা যেতে পারে।
